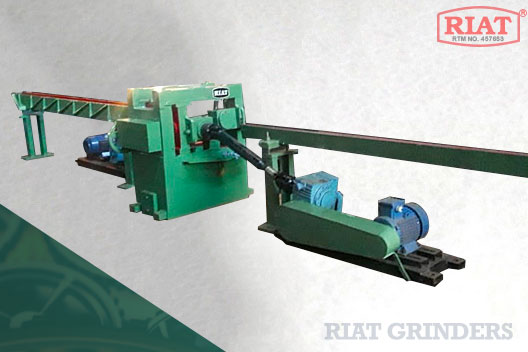

| Model | TSM- 10 |
TSM- 15 |
TSM- 20 |
TSM- 30 |
TSMU- 25 |
TSMU- 40 |
TSMU- 50 |
TSMU- 65 |
TSMU- 80 |
|---|---|---|---|---|---|---|---|---|---|
|
Bar Straightening Capacity in M.S. Bright Bars |
4-10 mm |
6-15 mm |
10-20 mm |
15-30 mm |
4-25 mm |
10-40 mm |
15-50 mm |
20-65 mm |
30-80 mm |
|
Rate of production M/min. |
6.4 | 6.4 | 5.4 | 3.4, 5.2,6.4 | 5.4 | 5 | 4.5 | 2 to 5 | 2 to 5 |
|
Electric Motor (H.P./RPM) |
3/1440 | 3/1440 | 5/1440 | 10/960 | 5/1440 (2Nos.) | 7.5/1440 (2Nos.) | 10/1440 (2Nos.) | 20/1440 (2Nos.) | 25/1440 (2Nos.) |
|
Straightening Length (Meters)
(a) Standard (b) Maximum |
3 6 |
3 6 |
3 6 |
3 6 |
3 6 |
6.5 6.5 |
6.5 6.5 |
6.5 6.5 |
6.5 6.5 |
| Floor Space with standard Guideways (Meters) | 5.9x0.69 | 5.9x0.69 | 5.9x0.69 | 7.01x0.9 | 7.0x0.9 | 13x1.25 | 13x1.25 | 11.75x2.3 | 12x2.5 |
| Number of Bar Stays | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gross Weight (Appx.) | 1200 Kg. | 1200 Kg. | 1300 Kg. | 2400 Kg. | 2500 Kg. | 3500 Kg. | 4000 Kg. | 6500 Kg. | 7000 Kg. |
| Model | SMHU- 60 |
SHMU- 80 |
SHMU- 100 |
|---|---|---|---|
|
Bar Straightening Capacity in Alloy Steel |
20-60 mm |
30-80 mm |
40-100 mm |
|
Rate of production M/min. |
2 to 5 | 2 to 5 | 2 to 5 |
|
Electric Motor (H.P./RPM) |
25/1440 (2Nos.) | 30/1440 (2Nos.) | 40/1440 (2Nos.) |
|
Straightening Length (Meters)
(a) Standard (b) Maximum |
6.5 6.5 |
6.5 6.5 |
6.5 6.5 |
| Floor Space with standard Guideways (Meters) | 13x2.75 | 13.25x3 | 13.5x3.5 |
| Number of Bar Stays | 2 | 2 | 2 |
| Gross Weight (Appx.) | 8000 Kg. | 9500 Kg. | 13500 Kg. |
